I recently deployed an Orchard Core app on Amazon ECS and wanted to gain better visibility into its performance and health.
Instead of relying solely on basic Amazon CloudWatch metrics, I decided to build a custom monitoring pipeline that has Grafana running on Amazon EC2 receiving metrics and EMF (Embedded Metrics Format) logs sent from the Orchard Core on ECS via CloudFormation configuration.
In this post, I will walk through how I set this up from scratch, what challenges I faced, and how you can do the same.
Source Code
The CloudFormation templates and relevant C# source codes discussed in this article is available on GitHub as part of the Orchard Core Basics Companion (OCBC) Project:https://github.com/gcl-team/Experiment.OrchardCore.Main.
Why Grafana?
In the previous post where we setup the Orchard Core on ECS, we talked about how we can send metrics and logs to CloudWatch. While it is true that CloudWatch offers us out-of-the-box infrastructure metrics and AWS-native alarms and logs, the dashboards CloudWatch provides are limited and not as customisable. Managing observability with just CloudWatch gets tricky when our apps span multiple AWS regions, accounts, or other cloud environments.
The GrafanaLive event in Singapore in September 2023. (Event Page)
If we are looking for solution that is not tied to single vendor like AWS, Grafana can be one of the options. Grafana is an open-source visualisation platform that lets teams monitor real-time metrics from multiple sources, like CloudWatch, X-Ray, Prometheus and so on, all in unified dashboards. It is lightweight, extensible, and ideal for observability in cloud-native environments.
Is Grafana the only solution? Definitely not! However, personally I still prefer Grafana because it is open-source and free to start. In this blog post, we will also see how easy to host Grafana on EC2 and integrate it directly with CloudWatch with no extra agents needed.
Three Pillars of Observability
In observability, there are three pillars, i.e. logs, metrics, and traces.
Lisa Jung, senior developer advocate at Grafana, talks about the three pillars in observability (Image Credit: Grafana Labs)
Firstly, logs are text records that capture events happening in the system.
Secondly, metrics are numeric measurements tracked over time, such as HTTP status code counts, response times, or ECS CPU and memory utilisation rates.
Finally, traces show the form a strong observability foundation which can help us to identify issues faster, reduce downtime, and improve system reliability. This will ultimately support better user experience for our apps.
This is where we need a tool like Grafana because Grafana assists us to visualise, analyse, and alert based on our metrics, making observability practical and actionable.
Setup Grafana on EC2 with CloudFormation
It is straightforward to install Grafana on EC2.
Firstly, let’s define the security group that we will be use for the EC2.
ec2SecurityGroup: Type: AWS::EC2::SecurityGroup Properties: GroupDescription: Allow access to the EC2 instance hosting Grafana VpcId: {"Fn::ImportValue": !Sub "${CoreNetworkStackName}-${AWS::Region}-vpcId"} SecurityGroupIngress: - IpProtocol: tcp FromPort: 22 ToPort: 22 CidrIp: 0.0.0.0/0 # Caution: SSH open to public, restrict as needed - IpProtocol: tcp FromPort: 3000 ToPort: 3000 CidrIp: 0.0.0.0/0 # Caution: Grafana open to public, restrict as needed Tags: - Key: Stack Value: !Ref AWS::StackName
For demo purpose, please notice that both SSH (port 22) and Grafana (port 3000) are open to the world (0.0.0.0/0). It is important to protect the access to EC2 by adding a bastion host, VPN, or IP restriction later.
In addition, the SSH should only be opened temporarily. The SSH access is for when we need to log in to the EC2 instance and troubleshoot Grafana installation manually.
Now, we can proceed to setup EC2 with Grafana installed using the CloudFormation resource below.
In the CloudFormation template above, we are expecting our users to access the Grafana dashboard directly over the Internet. Hence, we put the EC2 in public subnet and assign an Elastic IP (EIP) to it, as demonstrated below, so that we can have a consistent public accessible static IP for our Grafana.
For production systems, placing instances in public subnets and exposing them with a public IP requires us to have strong security measures in place. Otherwise, it is recommended to place our Grafana EC2 instance in private subnets and accessed via Application Load Balancer (ALB) or NAT Gateway to reduce the attack surface.
Pump CloudWatch Metrics to Grafana
Grafana supports CloudWatch as a native data source.
With the appropriate AWS credentials and region, we can use Access Key ID and Secret Access Key to grant Grafana the access to CloudWatcch. The user that the credentials belong to must have the AmazonGrafanaCloudWatchAccess policy.
The user that Grafana uses to access CloudWatch must have the AmazonGrafanaCloudWatchAccess policy.
However, using AWS Access Key/Secret in Grafana data source connection details is less secure and not ideal for EC2 setups. In addition, AmazonGrafanaCloudWatchAccess is a managed policy optimised for running Grafana as a managed service within AWS. Thus, it is recommended to create our own custom policy so that we can limit the permissions to only what is needed, as demonstrated with the following CloudWatch template.
Again, using our custom policy provides better control and follows the best practices of least privilege.
With IAM role, we do not need to provide AWS Access Key/Secret in Grafana connection details for CloudWatch as a data source.
Visualising ECS Service Metrics
Now that Grafana is configured to pull data from CloudWatch, ECS metrics like CPUUtilization and MemoryUtilization, are available. We can proceed to create a dashboard and select the right namespace as well as the right metric name.
Setting up the diagram for memory utilisation of our Orchard Core app in our ECS cluster.
As shown in the following dashboard, we show memory and CPU utilisation rates because they help us ensure that our ECS services are performing within safe limits and not overusing or underutilizing resources. By monitoring the utilisation, we ensure our services are using just the right amount of resources.
Both ECS service metrics and container insights are displayed on Grafana dashboard.
Visualising ECS Container Insights Metrics
ECS Container Insights Metrics are deeper metrics like task counts, network I/O, storage I/O, and so on.
In the dashboard above, we can also see the number of Task Count. Task Count helps us make sure our services are running the right number of instances at all times.
Task Count by itself is not a cost metric, but if we consistently see high task counts with low CPU/memory usage, it indicates we can potentially consolidate workloads and reduce costs.
Instrumenting Orchard Core to Send Custom App Metrics
Now that we have seen how ECS metrics are visualised in Grafana, let’s move on to instrumenting our Orchard Core app to send custom app-level metrics. This will give us deeper visibility into what our app is really doing.
Metrics should be tied to business objectives. It’s crucial that the metrics you collect align with KPIs that can drive decision-making.
Metrics should be actionable. The collected data should help identify where to optimise, what to improve, and how to make decisions. For example, by tracking app-metrics such as response time and HTTP status codes, we gain insight into both performance and reliability of our Orchard Core. This allows us to catch slowdowns or failures early, improving user satisfaction.
SLA vs SLO vs SLI: Key Differences in Service Metrics (Image Credit: Atlassian)
By tracking response times and HTTP code counts at the endpoint level, we are measuring SLIs that are necessary to monitor if we are meeting our SLOs.
With clear SLOs and SLIs, we can then focus on what really matters from a performance and reliability perspective. For example, a common SLO could be “99.9% of requests to our Orchard Core API endpoints must be processed within 500ms.”
In terms of sending custom app-level metrics from our Orchard Core to CloudWatch and then to Grafana, there are many approaches depending on our use case. If we are looking for simplicity and speed, CloudWatch SDK and EMF are definitely the easiest and most straightforward methods we can use to get started with sending custom metrics from Orchard Core to CloudWatch, and then visualising them in Grafana.
var metricData = new MetricDatum { MetricName = metricName, Value = value, Unit = StandardUnit.Count, Dimensions = new List<Dimension> { new Dimension { Name = "Endpoint", Value = endpointPath } } };
var request = new PutMetricDataRequest { Namespace = "Experiment.OrchardCore.Main/Performance", MetricData = new List<MetricDatum> { metricData } };
In the code above, we see new concepts like Namespace, Metric, and Dimension. They are foundational in CloudWatch. We can think of them as ways to organize and label our data to make it easy to find, group, and analyse.
Namespace: A container or category for our metrics. It helps to group related metrics together;
Metric: A series of data points that we want to track. The thing we are measuring, in our example, it could be Http2xxCount and Http4xxCount;
Dimension:A key-value pair that adds context to a metric.
If we do not define the Namespace, Metric, and Dimensions carefully when we send data, Grafana later will not find them, or our charts on the dashboards will be very messy and hard to filter or analyse.
In addition, as shown in the code above, we are capturing the HTTP status code for our Orchard Core endpoints. We will then use PutMetricDataAsync to send the metric data PutMetricDataRequest asynchronously to CloudWatch.
The HTTP status codes of each of our Orchard Core endpoints are now captured on CloudWatch.
In Grafana, now when we want to configure a CloudWatch panel to show the HTTP status codes for each of the endpoint, the first thing we select is the Namespace, which is Experiment.OrchardCore.Main/Performance in our example. Namespace tells Grafana which group of metrics to query.
After picking the Namespace, Grafana lists the available Metrics inside that Namespace. We pick the Metrics we want to plot, such as Http2xxCount and Http4xxCount. Finally, since we are tracking metrics by endpoint, we set the Dimension to Endpoint and select the specific endpoint we are interested in, as shown in the following screenshot.
Using EMF to Send Metrics
While using the CloudWatch SDK works well for sending individual metrics, EMF (Embedded Metric Format) offers a more powerful and scalable way to log structured metrics directly from our app logs.
Before we can use EMF, we must first ensure that the Orchard Core application logs from our ECS tasks are correctly sent to CloudWatch Logs. This is done by configuring the LogConfiguration inside the ECS TaskDefinitionas we discussed last time.
Once the ECS task is sending logs to CloudWatch Logs, we can start embedding custom metrics into the logs using EMF.
Instead of pushing metrics directly using the CloudWatch SDK, we send structured JSON messages into the container logs. CloudWatch will then auto detects these EMF messages and converts them into CloudWatch Metrics.
The following shows what a simple EMF log message looks like.
When a log message reaches CloudWatch Logs, CloudWatch scans the text and looks for a valid _aws JSON object inside anywhere in the message. Thus, even if our log line has extra text before or after, as long as the EMF JSON is properly formatted, CloudWatch extracts it and publishes the metrics automatically.

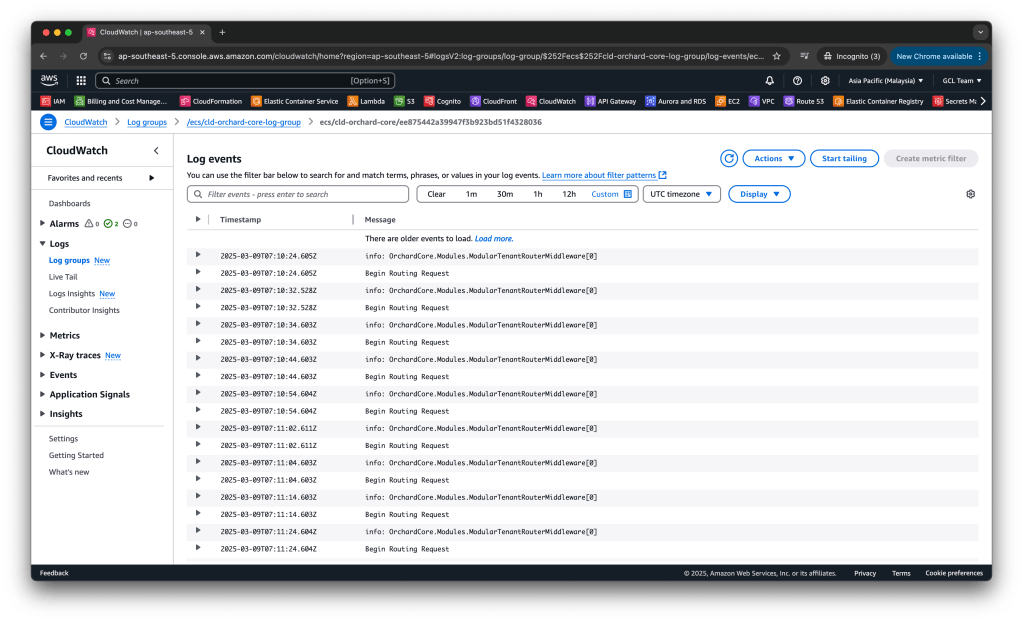

An example of log with EMF JSON in it on CloudWatch.
After CloudWatch extracts the EMF block from our log message, it automatically turns it into a proper CloudWatch Metric. These metrics are then queryable just like any normal CloudWatch metric and thus available inside Grafana too, as shown in the screenshot below.
Metrics extracted from logs containing EMF JSON are automatically turned into metrics that can be visualised in Grafana just like any other metric.
As we can see, using EMF is easier as compared to going the CloudWatch SDK route because we do not need to change or add extra AWS infrastructure. With EMF, what our app does is just writing special JSON-format logs.
Then CloudWatch Metrics automatically extracts the metrics from those logs with EMF JSON. The entire process requires no new service, no special SDK code, and no CloudWatch PutMetric API calls.
Cost Optimisation with Logs vs Metrics
Logs are more expensive than metrics, especially when we are storing large amounts of data over time. This is also true when logs are stored at a higher retention rate and are more detailed, which means higher storage costs.
Metrics are cheaper to store because they are aggregated data points that do not require the same level of detail as logs.
CloudWatch treats each unique combination of dimensions as a separate metric, even if the metrics have the same metric name. However, compared to logs, metrics are still usually much cheaper at scale.
By embedding metrics into your log data via EMF, we are actually piggybacking metrics into logs, and letting CloudWatch extract metrics without duplicating effort. Thus, when using EMF, we will be paying for both, i.e.
Log ingestion and storage (for the raw logs);
The extracted custom metric (for the metric).
Hence, when we are leveraging EMF, we should consider expire logs faster if we only need the extracted metrics long-term.
Granularity and Sampling
Granularity refers to how frequent the metric data is collected. Fine granularity provides more detailed insights but can lead to increased data volume and costs.
Sampling is a technique to reduce the amount of data collected by capturing only a subset of data points (especially helpful in high-traffic systems). However, the challenge is ensuring that you maintain enough data to make informed decisions while keeping storage and processing costs manageable.
In our Orchard Core app above, currently the middleware that we implement will immediately PutMetricDataAsync to CloudWatch which will then not only slow down our API but it costs more because we need to pay when we send custom metrics to CloudWatch. Thus, we usually “buffer” the metrics first, and then batch-send periodically. This can be done with, for example, HostedService which is an ASP.NET Core background service, to flush metrics at interval.
using Amazon.CloudWatch; using Amazon.CloudWatch.Model; using Microsoft.Extensions.Hosting; using Microsoft.Extensions.Options; using System.Collections.Concurrent;
public class MetricsPublisher( IAmazonCloudWatch cloudWatch, IOptions<MetricsOptions> options, ILogger<MetricsPublisher> logger) : BackgroundService { private readonly ConcurrentBag<MetricDatum> _pendingMetrics = new();
public void TrackMetric(string metricName, double value, string endpointPath) { _pendingMetrics.Add(new MetricDatum { MetricName = metricName, Value = value, Unit = StandardUnit.Count, Dimensions = new List<Dimension> { new Dimension { Name = "Endpoint", Value = endpointPath } } }); }
In our Orchard Core API, each incoming HTTP request may run on a different thread. Hence, we need a thread-safe data structure like ConcurrentBag for storing the pending metrics.
Please take note that ConcurrentBag is designed to be an unordered collection. It does not maintain the order of insertion when items are taken from it. However, since the metrics we are sending, which is the counts of HTTP status codes, it does not matter in what order the requests were processed.
Finally, we can inject MetricsPublisher to our middleware EndpointStatisticsMiddleware so that it can auto track every API request.
Wrap-Up
In this post, we started by setting up Grafana on EC2, connected it to CloudWatch to visualise ECS metrics. After that, we explored two ways, i.e. CloudWatch SDK and EMF log, to send custom app-level metrics from our Orchard Core app:
Whether we are monitoring system health or reporting on business KPIs, Grafana with CloudWatch offers a powerful observability stack that is both flexible and cost-aware.
During the session, Mohammad L. U. Tanjim, the Product Manager of ApiDog, gave a detailed walkthrough of the API-First design and how Apidog can be used for this approach.
Apidog helps us to define, test, and document APIs in one place. Instead of manually writing Swagger docs and using API tool separately, ApiDog combines everything. This means frontend developers can get mock APIs instantly, and backend developers as well as QAs can get clear API specs with automatic testing support.
Hence, for the customised headless APIs, we will adopt an API-First design approach. This approach ensures clarity, consistency, and efficient collaboration between backend and frontend teams while reducing future rework.
By designing APIs upfront, we reduce the likelihood of frequent changes that disrupt development. It also ensures consistent API behaviour and better long-term maintainability.
For our frontend team, with a well-defined API specification, they can begin working with mock APIs, enabling parallel development. This eliminates dependencies where frontend work is blocked by backend completion.
For QA team, API spec will be important to them because it serve as a reference for automated testing. The QA engineers can validate API responses before implementation.
API Design Journey
In this article, we will embark on an API Design Journey by transforming a traditional travel agency in Singapore into an API-first system. To achieve this, we will use Apidog for API design and testing, and Orchard Core as a CMS to manage travel package information. Along the way, we will explore different considerations in API design, documentation, and integration to create a system that is both practical and scalable.
Many traditional travel agencies in Singapore still rely on manual processes. They store travel package details in spreadsheets, printed brochures, or even handwritten notes. This makes it challenging to update, search, and distribute information efficiently.
The reliance on physical posters and brochures of a travel agency is interesting in today’s digital age.
By introducing a headless CMS like Orchard Core, we can centralise travel package management while allowing different clients like mobile apps to access the data through APIs. This approach not only modernises the operations in the travel agency but also enables seamless integration with other systems.
API Design Journey 01: The Design Phase
Now that we understand the challenges of managing travel packages manually, we will build the API with Orchard Core to enable seamless access to travel package data.
Instead of jumping straight into coding, we will first focus on the design phase, ensuring that our API meets the business requirements. At this stage, we focus on designing endpoints, such as GET /api/v1/packages, to manage the travel packages. We also plan how we will structure the response.
Given the scope and complexity of a full travel package CMS, this article will focus on designing a subset of API endpoints, as shown in the screenshot below. This allows us to highlight essential design principles and approaches that can be applied across the entire API journey with Apidog.
Let’s start with eight simple endpoints.
For the first endpoint “Get all travel packages”, we design it with the following query parameters to support flexible and efficient result filtering, pagination, sorting, and text search. This approach ensures that users can easily retrieve and navigate through travel packages based on their specific needs and preferences.
GET /api/v1/packages?page=1&pageSize=20&sortBy=price&sortOrder=asc&destinationId=4&priceRange[min]=500&priceRange[max]=2000&rating=4&searchTerm=spa
Pasting the API path with query parameters to the Endpoint field will auto populate the Request Params section in Apidog.
Same with the request section, the Response also can be generated based on a sample JSON that we expect the endpoint to return, as shown in the following screenshot.
As shown in the Preview, the response structure can be derived from a sample JSON.
In the screenshot above, the field “description” is marked as optional because it is the only property that does not exist in all the other entry in “data”.
Besides the success status, we also need another important HTTP 400 status code which tells the client that something is wrong with their request.
By default, for generic error responses like HTTP 400, there are response components that we can directly use in Apidog.
The reason why we need HTTP 400 is that, instead of processing an invalid request and returning incorrect or unexpected results, our API should explicitly reject it, ensuring that the client knows what needs to be fixed. This improves both developer experience and API reliability.
After completing the endpoint for getting all travel packages, we also have another POST endpoint to search travel packages.
While GET is the standard method for retrieving data from an API, complex search queries involving multiple parameters, filters, or file uploads might require the use of a POST request. This is particularly true when dealing with advanced search forms or large amounts of data, which cannot be easily represented as URL query parameters. In these cases, POST allows us to send the parameters in the body of the request, ensuring the URL remains manageable and avoiding URL length limits.
For example, let’s assume this POST endpoint allows us to search for travel packages with the following body.
We can also easily generate the data schema for the body by pasting this JSON as example into Apidog, as shown in the screenshot below.
Setting up the data schema for the body of an HTTP POST request.
When making an HTTP POST request, the client sends data to the server. While JSON in the request body is common, there is also another format used in APIs, i.e. multipart/form-data (also known as form-data).
The form-data is used when the request body contains files, images, or binary data along with text fields. So, if our endpoint /api/v1/packages/{id}/reviews allows users to submit both text (review content and rating) and an image, using form-data is the best choice, as demonstrated in the following screenshot.
Setting up a request body which is multipart/form-data in Apidog.
API Design Journey 02: Prototyping with Mockups
When designing the API, it is common to debate, for example, whether reviews should be nested inside packages or treated as a separate resource. By using Apidog, we can quickly create mock APIs for both versions and tested how they would work in different use cases. This helps us make a data-driven decision instead of endless discussions.
A list of mock API URLs for our “Get all travel packages” endpoint.
Clicking on the “Request” button next to each of the mock API URL will bring us to the corresponding mock response, as shown in the following screenshot.
Default mock response for HTTP 200 of our first endpoint “Get all travel packages”.
As shown in the screenshot above, some values in the mock response are not making any sense, for example negative id and destinationId, rating which is supposed to be between 1 and 5, “East” as sorting direction, and so on. How could we fix them?
Firstly, we will set the id (and destinationId) to be any positive integer number starting from 1.
Setting id to be a positive integer number starting from 1.
Secondly, we update both the price and rating to be float. In the following screenshot, we specify that the rating can be any float from 1.0 to 5.0 with single fraction digit.
Apidog is able to generate an example based on our condition under “Preview”.
Finally, we will indicate that the sorting direction can only be either ASC or DESC, as shown in the following screenshot.
Configuring the possible value for the direction field.
With all the necessary mock values configuration, if we fetch the mock response again, we should be able to get a response with more reasonable values, as demonstrated in the screenshot below.
Now the mock response looks more reasonable.
With the mock APIs, our frontend developers will be able to start building UI components without waiting for the backend to be completed. Also, as shown above, a mock API responds instantly, unlike real APIs that depend on database queries, authentication, or network latency. This makes UI development and unit testing faster.
Speaking of testing, some test cases are difficult to create with a real API. For example, what if an API returns an error (500 Internal Server Error)? What if there are thousands of travel packages? With a mock API, we can control the responses and simulate rare cases easily.
For example, our travel package API allows admins to see all packages, including unpublished ones, while regular users only see public packages. We thus can setup in such a way that different bearer token will return different set of mock data.
We are setting up the endpoint to return drafts when a correct admin token is provided in the request header with Mock Expectation.
With Mock Expectation feature, Apidog can return custom responses based on request parameters as well. For instance, it can return normal packages when the destinationId is 1 and trigger an error when the destinationId is 2.
API Design Journey 03: Documenting Phase
With endpoints designed properly in earlier two phases, we can now proceed to create documentation which is offers a detailed explanation of the endpoints in our API. This documentation will include the information such as HTTP methods, request parameters, and response formats.
Fortunately, Apidog makes the documentation process smooth by integrating well within the API ecosystem. It also makes sharing easy, letting us export the documentation in formats like OpenAPI, HTML, and Markdown.
Apidog can export API spec in formats like OpenAPI, HTML, and Markdown.
We can also export our documentation on folder basis to OpenAPI Specification in Overview, as shown below.
Custom export configuration for OpenAPI Specification.
We can also export the data as an offline document. Just click on the “Open URL” or “Permalink” button to view the raw JSON/YAML content directly in the Internet browser. We then can place the raw content into the Swagger Editor to view the Swagger UI of our API, as demonstrated in the following screenshot.
The exported content from Apidog can be imported to Swagger Editor directly.
Let’s say now we need to share the documentation with our team, stakeholders, or even the public. Our documentation thus needs to be accessible and easy to navigate. That is where exporting to HTML or Markdown comes in handy.
Documentation is Markdown format, generated by Apidog.
Finally, Apidog also allows us to conveniently publish our API documentation as a webpage. There are two options: Quick Share, for sharing parts of the docs with collaborators, and Publish Docs, for making the full documentation publicly available.
Quick Share is great for API collaborators because we can set a password for access and define an expiration time for the shared documentation. If no expiration is set, the link stays active indefinitely.
API spec presented as a website and accessible by the collaborators. It also enables collaborators to generate client code for different languages.
API Design Journey 04: The Development Phase
With our API fully designed, mocked, and documented, it is time to bring it to life with actual code. Since we have already defined information such as the endpoints, request format, and response formats, implementation becomes much more straightforward. Now, let’s start building the backend to match our API specifications.
Orchard Core generally supports two main approaches for designing APIs, i.e. Headless and Decoupled.
In the headless approach, Orchard Core acts purely as a backend CMS, exposing content via APIs without a frontend. The frontend is built separately.
In the decoupled approach, Orchard Core still provides APIs like in the headless approach, but it also serves some frontend rendering. It is a hybrid approach because we use Razor Pages some parts of the UI are rendered by Orchard, while others rely on APIs.
So in fact, we can combine the good of both approaches so that we can build a customised headless APIs on Orchard Core using services like IOrchardHelper to fetch content dynamically and IContentManager to allow us full CRUD operations on content items. This is in fact the approach mentioned in the Orchard Core Basics Companion (OCBC) documentation.
For the endpoint of getting a list of travel packages, i.e. /api/v1/packages, we can define it as follows.
[ApiController] [Route("api/v1/packages")] public class PackageController( IOrchardHelper orchard, ...) : Controller { [HttpGet] public async Task<IActionResult> GetTravelPackages() { var travelPackages = await orchard.QueryContentItemsAsync(q => q.Where(c => c.ContentType == "TravelPackage"));
...
return Ok(travelPackages); }
... }
In the code above, we are using Orchard Core Headless CMS API and leveraging IOrchardHelper to query content items of type “TravelPackage”. We are then exposing a REST API (GET /api/v1/packages) that returns all travel packages stored as content items in the Orchard Core CMS.
API Design Journey 05: Testing of Actual Implementation
Let’s assume our Dev Server Base URL is localhost. This URL is set as a variable in the Develop Env, as shown in the screenshot below.
Setting Base URL for Develop Env on Apidog.
With the environment setup, we can now proceed to run our endpoint under that environment. As shown in the following screenshot, we are able to immediately validate the implementation of our endpoint.
Validated the GET endpoint under Develop Env.
The screenshot above shows that through API Validation Testing, the implementation of that endpoint has met all expected requirements.
API validation tests are not just for simple checks. The feature is great for handling complex, multi-step API workflows too. With them, we can chain multiple requests together, simulate real-world scenarios, and even run the same requests with different test data. This makes it easier to catch issues early and keep our API running smoothly.
Populate testing steps based on our API spec in Apidog.
In addition, we can also set up Scheduled Tasks, which is still in Beta now, to automatically run our test scenarios at specific times. This helps us monitor API performance, catch issues early, and ensure everything works as expected automatically. Plus, we can review the execution results to stay on top of any failures.
Result of running one of the endpoints on Develop Env.
Wrap-Up
Throughout this article, we have walked through the process of designing, mocking, documenting, implementing, and testing a headless API in Orchard Core using Apidog. By following an API-first approach, we ensure that our API is well-structured, easy to maintain, and developer-friendly.
With this approach, teams can collaborate more effectively, reduce friction in development. Now that the foundation is set, the next step could be integrating this API into a frontend app, optimising our API performance, or automating even more tests.
Finally, with .NET 9 moving away from built-in Swagger UI, developers now have to find alternatives to set up API documentation. As we can see, Apidog offers a powerful alternative, because it combines API design, testing, and documentation in one tool. It simplifies collaboration while ensuring a smooth API-first design approach.
For .NET developers looking for Content Management System (CMS) solution, Orchard Core presents a compelling, open-source option. Orchard Core is a CMS built on ASP.NET Core. When deploying Orchard Core on AWS, the Elastic Container Service (ECS) provides a good hosting platform that can handle high traffic, keep costs down, and remain stable.
However, finding clear instructions for deploying Orchard Core to ECS end-to-end can be difficult. This may require us to do more testing and troubleshooting, and potentially lead to a less efficient or secure setup. A lack of a standard deployment process can also complicate infrastructure management and hinder the implementation of CI/CD. This is where Infrastructure as Code (IaC) comes in.
IaC provides a solution for automating infrastructure management. With IaC, we define our entire infrastructure which hosts Orchard Core setup as code. This code can then be version-controlled, tested, and deployed just like application code.
CloudFormation is an AWS service that implements IaC. By using CloudFormation, AWS automatically provisions and configures all the necessary resources for our Orchard Core hosting, ensuring consistent and repeatable deployments across different environments.
This article is for .NET developers who know a bit about AWS concepts such as ECS or CloudFormation. We’ll demonstrate how CloudFormation can help to setup the infrastructure for hosting Orchard Core on AWS.
The desired infrastructure of our CloudFormation setup.
Now let’s start writing our CloudFormation as follows. We start by defining some useful parameters that we will be using later. Some of the parameters will be discussed in the following relevant sections.
AWSTemplateFormatVersion: '2010-09-09' Description: "Infrastructure for Orchard Core CMS"
Parameters: VpcCIDR: Type: String Description: "VPC CIDR Block" Default: 10.0.0.0/16 AllowedPattern: '((\d{1,3})\.){3}\d{1,3}/\d{1,2}' ApiGatewayStageName: Type: String Default: "production" AllowedValues: - production - staging - development ServiceName: Type: String Default: cld-orchard-core Description: "The service name" CmsDBName: Type: String Default: orchardcorecmsdb Description: "The name of the database to create" CmsDbMasterUsername: Type: String Default: orchardcoreroot HostedZoneId: Type: String Default: <your Route 53 hosted zone id> HostedZoneName: Type: String Default: <your custom domain> CmsHostname: Type: String Default: orchardcms OrchardCoreImage: Type: String Default: <your ECR link>/orchard-core-cms:latest EcsAmi: Description: The Amazon Machine Image ID used for the cluster Type: AWS::SSM::Parameter::Value<AWS::EC2::Image::Id> Default: /aws/service/ecs/optimized-ami/amazon-linux-2023/recommended/image_id
Dockerfile
The Dockerfile is quite straightforward.
# Global Arguments ARG DCR_URL=mcr.microsoft.com ARG BUILD_IMAGE=${DCR_URL}/dotnet/sdk:8.0-alpine ARG RUNTIME_IMAGE=${DCR_URL}/dotnet/aspnet:8.0-alpine
# Build Container FROM ${BUILD_IMAGE} AS builder WORKDIR /app
COPY . .
RUN dotnet restore RUN dotnet publish ./OCBC.HeadlessCMS/OCBC.HeadlessCMS.csproj -c Release -o /app/src/out
The --platform flag specifies the target OS and architecture for the image being built. Even though it is optional, it is particularly useful when building images on a different platform (like macOS or Windows) and deploying them to another platform (like Amazon Linux) that has a different architecture.
ARM-based Apple Silicon was announced in 2020. (Image Credit: The Verge)
I am using macOS with ARM-based Apple Silicon, whereas Amazon Linux AMI uses amd64 (x86_64) architecture. Hence, if I do not specify the platform, the image I build on my Macbook will be incompatible with EC2 instance.
Once the image is built, we will push it to the Elastic Container Registry (ECR).
We choose ECR because it is directly integrated with ECS, which means deploying images from ECR to ECS is smooth. When ECS needs to pull an image from ECR, it automatically uses the IAM role to authenticate and authorise the request to ECR. The execution role of our ECS is associated with the AmazonECSTaskExecutionRolePolicy IAM policy, which allows ECS to pull images from ECR.
ECR also comes with built-in support for image scanning, which automatically scans our images for vulnerabilities.

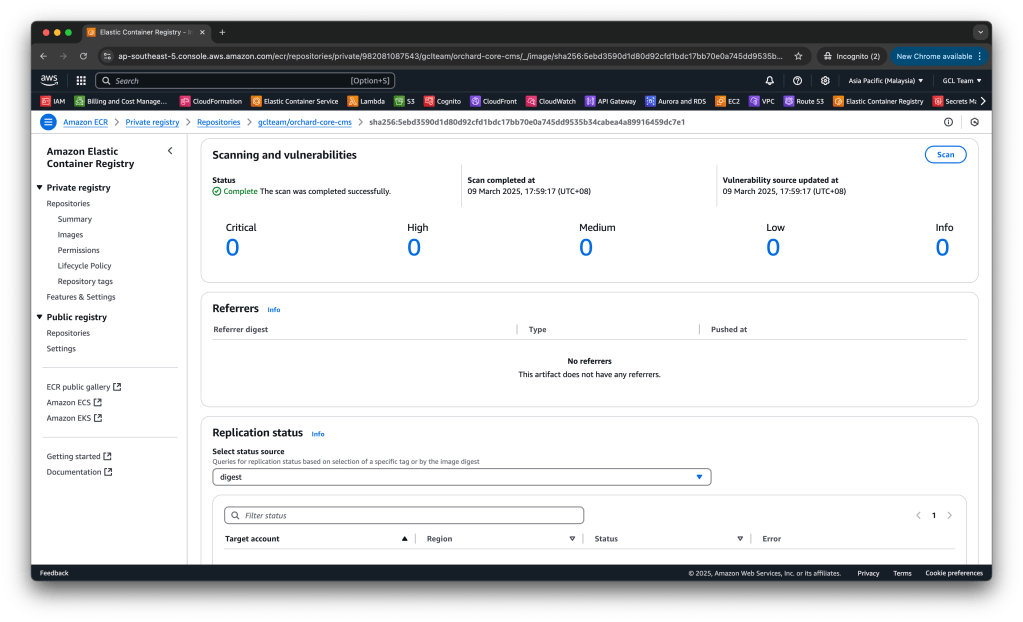

Image scanning in ECR helps ensure our images are secure before we deploy them.
Unit 01: IAM Role
Technically, we are able to run Orchard Core on ECS without any ECS task role. However, that is possible only if our Orchard Core app does not need to interact with AWS services. Not only for our app, but actually most of the modern web apps, we always need to integrate our app with AWS services such as S3, CloudWatch, etc. Hence, the first thing that we need to work on is setting up an ECS task role.
In AWS IAM, permissions are assigned to roles, not directly to the services that need them. Thus, we cannot directly assign IAM policies to ECS tasks. Instead, we assign those policies to a role, and then the ECS task temporarily assumes that role to gain those permissions, as shown in the configuration above.
Roles are considered temporary because they are only assumed for the duration that the ECS task needs to interact with AWS resources. Once the ECS task stops, the temporary permissions are no longer valid, and the service loses access to the resources.
Hence, by using roles and AssumeRole, we follow the principle of least privilege. The ECS task is granted only the permissions it needs and can only use them temporarily.
Unit 02: CloudWatch Log Group
ECS tasks, by default, do not have logging enabled.
Hence, assigning a role to our ECS task for logging to CloudWatch Logs is definitely one of the first roles we should assign when setting up ECS tasks. Setting logging up early helps to avoid surprises later on when our ECS tasks are running.
To setup the logging, we first need to specify Log Group, a place in CloudWatch that logs go. While ECS itself can create the log group automatically when the ECS task starts (if it does not already exist), it is a good practice to define the log group in CloudFormation to ensure it exists ahead of time and can be managed within our IaC.
By separating the logging policy into its own resource, we make it easier to manage and update policies independently of the ECS task role. After defining the policy, we attach it to the ECS task role by referencing it in the Roles section.
The logging setup helps us consolidate log events from the container into a centralised log group in CloudWatch.
Unit 03: S3 Bucket
We will be storing the files uploaded to the Orchard Core through its Media module on Amazon S3. So, we need to configure our S3 Bucket as follows.
Since bucket names must be globally unique, we dynamically create it using AWS Region and AWS Account ID.
Since our Orchard Core can be running in multiple ECS tasks that upload media files to a shared S3 bucket, the BucketOwnerPreferred setting ensures that even if media files are uploaded by different ECS tasks, the owner of the S3 bucket can still access, delete, or modify any of those media files without needing additional permissions for each uploaded object.
The bucket owner having full control is a security necessity in many cases because it allows the owner to apply policies, access controls, and auditing in a centralised way, maintaining the security posture of the bucket.
However, even if the bucket owner has control, the principle of least privilege should still apply. For example, only the ECS task responsible for Orchard Core should be allowed to interact with the media objects.
Keeping the s3:ListBucket permission in the policy is a necessary permission for Orchard Core Media module to work properly. Meanwhile, both s3:PutObject and s3:GetObject are used for uploading and downloading media files.
IAM Policy
Now, let’s pause a while to talk about the policies that we have added above for the log group and S3.
In AWS, we mostly deal with managed policies and inline policies depending on whether the policy needs to be reused or tightly scoped to one role.
We use AWS::IAM::ManagedPolicy when the permission needs to be reused by multiple roles or services. So it is frequently used in company-wide security policies. Thus it is not suitable for our Orchard Core examples above. Instead, we useAWS::IAM::Policy because it is for a permission which is tightly connected to a single role and will not be reused elsewhere.
In addition, since AWS::IAM::Policy is tightly tied to entities, it will be deleted when the corresponding entities are deleted. This is a key difference from AWS::IAM::ManagedPolicy, which remains even if the entities that use it are deleted. This explains why managed policy is used in company-wide policies because managed policy provides better long-term management for permissions that may be reused across multiple roles.
We can summarise the differences between two of them into the following table.
Orchard Core supports Relational DataBase Management System (RDBMS). Unlike traditional CMS platforms that rely on a single database engine, Orchard Core offers flexibility by supporting multiple RDBMS options, including:
Microsoft SQL Server;
PostgreSQL;
MySQL;
SQLite.
While SQLite is lightweight and easy to use, it is not suitable for production deployments on AWS. SQLite is designed for local storage, not multi-user concurrent access. On AWS, there are fully managed relational databases (RDS and Aurora) provided instead.
The database engines supported by Amazon RDS and Amazon Aurora.
While Amazon RDS is a well-known choice for relational databases, we can also consider Amazon Aurora, which was launched in 2014. Unlike traditional RDS, Aurora automatically scales up and down, reducing costs by ensuring we only pay for what we use.
In addition, Aurora is faster than standard PostgreSQL and MySQL, as shown in the screenshot above. It also offers built-in high availability with Multi-AZ replication. This is critical for a CMS like Orchard Core, which relies on fast queries and efficient data handling.
It is important to note that, while Aurora is optimised for AWS, it does not lock us in, as we retain full control over our data and schema. Hence, if we ever need to switch, we can export data and move to standard MySQL/PostgreSQL on another cloud or on-premises.
Instead of manually setting up Aurora, we will be using CloudFormation to ensure that the correct database instance, networking, security settings, and additional configurations are managed consistently.
Aurora is cluster-based rather than standalone DB instances like traditional RDS. Thus, instead of a single instance, we deploy a DB cluster, which consists of a primary writer node and multiple reader nodes for scalability and high availability.
Because of this cluster-based architecture, Aurora does not use the usual DBParameterGroup like standalone RDS instances. Instead, it requires a DBClusterParameterGroup to apply settings at the cluster level, ensuring all instances in the cluster inherit the same configuration, as shown in the following Cloudformation template.
cmsDBClusterParameterGroup: Type: AWS::RDS::DBClusterParameterGroup Properties: Description: "Aurora Provisioned Postgres DB Cluster Parameter Group" Family: aurora-postgresql16 Parameters: timezone: UTC # Ensures consistent timestamps rds.force_ssl: 1 # Enforce SSL for security
The first parameter we configure is the timezone. We set it to UTC to ensure consistency. So when we store date-time values in the database, we should use TIMESTAMPTZ for timestamps, and store the time zone as a TEXT field. After that, when we need to display the time in a local format, we can use the AT TIME ZONE feature in PostgreSQL to convert from UTC to the desired local time zone. This is important because PostgreSQL returns all times in UTC, so storing the time zone ensures we can always retrieve and present the correct local time when needed, as shown in the query below.
SELECT event_time_utc AT TIME ZONE timezone AS event_local_time FROM events;
After that, we enabled the rds.force_ssl so that all connections to our Aurora are encrypted using SSL. This is necessary to prevent data from being sent in plaintext. Even if our Aurora database is behind a bastion host, enforcing SSL connections is still recommended because SSL ensures the encryption of all data in transit, adding an extra layer of security. It is also worth mentioning that enabling SSL does not negatively impact performance much, but it adds a significant security benefit.
Once the DBClusterParameterGroup is configured, the next step is to configure the AWS::RDS::DBCluster resource, where we will define the cluster main configuration with the parameter group defined above.
The BackupRetentionPeriod parameter in the Aurora DB cluster determines how many days automated backups are retained by AWS. It can be from a minimum of 1 day to a maximum of 35 days for Aurora databases. For most business applications, 7 days of backups is often enough to handle common recovery scenarios unless we are required by law or regulation to keep backups for a certain period.
Aurora automatically performs incremental backups for our database every day, which means that it does not back up the entire database each time. Instead, it only stores the changes since the previous backup. This makes the backup process very efficient, especially for databases with little or no changes over time. If our CMS database remains relatively static, then the backup storage cost will remain very low or even free as long as our total backup data for the whole retention period does not exceed the storage capacity of our database.
So the total billed usage for backup depends on how much data is being changed each day, and whether the total backup size exceeds the volume size. If our database does not experience massive daily changes, the backup storage will likely remain within the database size and be free.
About DBClusterIdentifier
For the DBClusterIdentifier, we set it to the stack name, which makes it unique to the specific CloudFormation stack. This can be useful for differentiating clusters.
About DeletionProtection
In production environments, data loss or downtime is critical. DeletionProtection ensures that our CMS DB cluster will not be deleted unless it is explicitly disabled. There is no “shortcut” to bypass it for production resources. If DeletionProtection is enabled on the DB cluster, even CloudFormation will fail to delete the DB cluster. The only way to delete the DB cluster is that we disable DeletionProtection first via the AWS Console, CLI or SDK.
About EngineMode
In Aurora, EngineMode refers to the database operational mode. There are two primary modes, i.e. Provisioned and Serverless. For Orchard Core, Provisioned mode is typically the better choice because the mode ensures high availability, automatic recovery, and read scaling. Hence, if the CMS is going to have a consistent level of traffic, Provisioned mode will be able to handle that load. Serverless is useful if our CMS workload has unpredictable traffic patterns or usage spikes.
About MasterUserPassword
Storing database passwords directly in the CloudFormation template is a security risk.
There are a few other ways to handle sensitive data like passwords in CloudFormation, for example using AWS Secrets Manager and AWS Systems Manager (SSM) Parameter Store.
AWS Secrets Manager is a more advanced solution that offers automatic password rotation, which is useful for situations where we need to regularly rotate credentials. However, it may incur additional costs.
On the other hand, SSM Parameter Store provides a simpler and cost-effective solution for securely storing and referencing secrets, including database passwords. We can store up to 10,000 parameters (standard type) without any cost.
Hence, we need to use SSM Parameter Store to securely store the database password and reference it in CloudFormation without exposing it directly in our template, reducing the security risks and providing an easier management path for our secrets.

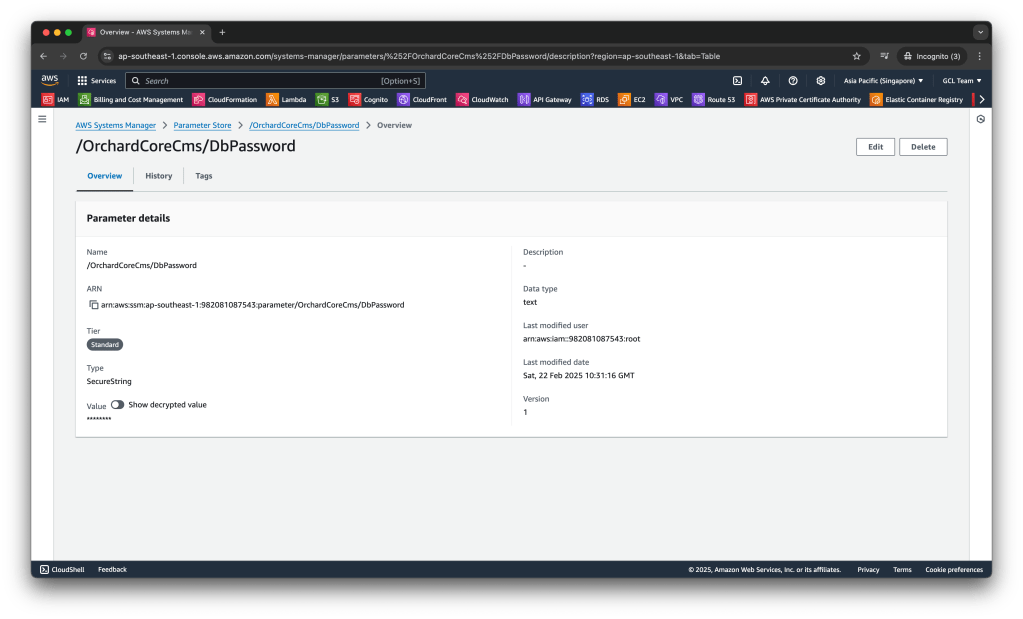

Database password is stored as a SecureString in Parameter Store.
Database password is stored as a SecureString in Parameter Store.
About DBSubnetGroupName and VpcSecurityGroupIds
These two configurations about Subnet and VPC will involve networking considerations. We will discuss further when we dive into the networking setup later.
Unit 05: Aurora Database Instance
Now that we have covered the Aurora DB cluster, which is the overall container for the database, let’s move on to the DB instance.
Think of the cluster as the foundation, and the DB instances are where the actual database operations take place. The DB instances are the ones that handle the read and write operations, replication, and scaling for the workload. So, in order for our CMS to work correctly, we need to define the DB instance configuration, which runs on top of the DB cluster.
Now that we have covered how the Aurora cluster and instance work, the next important thing is ensuring they are deployed in a secure and well-structured network. This is where the Virtual Private Cloud (VPC) comes in.

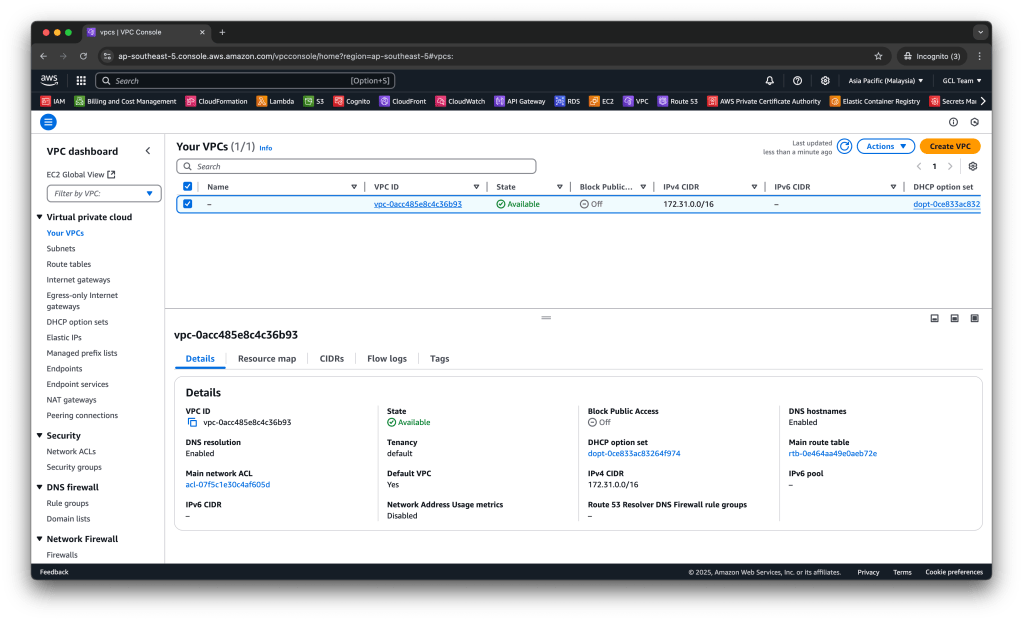

VPC is a virtual network in AWS where we define the infrastructure networking. It is like a private network inside AWS where we can control IP ranges, subnets, routing, and security.
The default VPC in Malaysia region.
By the way, you might have noticed that AWS automatically provides a default VPC in every region. It is a ready-to-use network setup that allows us to launch resources without configuring networking manually.
While it is convenient, it is recommended not to use the default VPC. This is because the default VPC is automatically created with predefined settings, which means we do not have full control over its configuration, such as subnet sizes, routing, security groups, etc. It also has public subnets by default which can accidentally expose internal resources to the Internet.
Since we are setting up our own VPC, one key decision we need to make is the CIDR block, i.e. the range of private IPs we allocate to our network. This is important because it determines how many subnets and IP addresses we can have within our VPC.
To future-proof our infrastructure, we will be using a /16 CIDR block, as shown in the VpcCIDR in our CloudFormation template. This gives us 65,536 IP addresses, which we can break into 64 subnets of /22 (each having 1,024 IPs). 64 subnets is usually more than enough for a well-structured VPC because most companies do not even need so many subnets in a single VPC unless they have very complex workloads. Just in case if one service needs more IPs, we can allocate a larger subnet, for example /21 instead of /22.
In the VPC setup, we are also trying to avoid creating too many VPCs unnecessarily. Managing multiple VPCs means handling VPC peering which increases operational overhead.
Since our ECS workloads and Orchard Core CMS are public-facing, we need EnableDnsHostnames: true so that public-facing instances get a public DNS name. We also need EnableDnsSupport: true to allow ECS tasks, internal services, and AWS resources like S3 and Aurora to resolve domain names internally.
For InstanceTenancy, which determines whether instances in our VPC run on shared (default) or dedicated hardware, it is recommended to use the default because AWS automatically places instances on shared hardware, which is cost-effective and scalable. We only need to change it if we are asked to use dedicated instances with full hardware isolation.
Now that we have defined our VPC, the next step is planning its subnet structure. We need both public and private subnets for our workloads.
Unit 07: Subnets and Subnet Groups
For our VPC with a /16 CIDR block, we will be breaking it into /24 subnets for better scalability:
Public Subnet 1: 10.0.0.0/24
Public Subnet 2: 10.0.1.0/24
Private Subnet 1: 10.0.2.0/24
Private Subnet 2: 10.0.3.0/24
Instead of manually specifying CIDRs, we will let CloudFormation automatically calculates the CIDR blocks for public and private subnets using !Select and !Cidr, as shown below.
Now with our subnets setup, we can revisit the DBSubnetGroupName in Aurora cluster and instance. Aurora clusters are highly available, and AWS recommends placing Aurora DB instances across multiple AZs to ensure redundancy and better fault tolerance. The Subnet Group allows us to define the subnets where Aurora will deploy its instances, which enables the multi-AZ deployment for high availability.
Earlier, we configured the Subnet Group for Aurora, which defines which subnets the Aurora instances will reside in. Now, we need to ensure that only authorised systems or services can access our database. That is where the Security Group cmsDBSecurityGroup comes into play.
For Aurora, we will configure the security group to only allow traffic from our private subnets, so that only trusted services within our VPC can reach the database.
Here we only setup security group for ingress but not egress because AWS security groups, by default, allow all outbound traffic.
Unit 09: Elastic Load Balancing (ELB)
Before diving into how we host Orchard Core on ECS, let’s first figure out how traffic will reach our ECS service. In modern cloud web app development and hosting, three key factors matter: reliability, scalability, and performance. And that is why a load balancer is essential.
Reliability – If we only have one container and it crashes, the whole app goes down. A load balancer allows us to run multiple containers so that even if one fails, the others keep running.
Scalability – As traffic increases, a single container will not be enough. A load balancer lets us add more containers dynamically when needed, ensuring smooth performance.
Performance – Handling many requests in parallel prevents slowdowns. A load balancer efficiently distributes traffic to multiple containers, improving response times.
For that, we need an Elastic Load Balancing (ELB) to distribute requests properly.
AWS originally launched ELB with only Classic Load Balancers (CLB). Later, AWS completely redesigned its load balancing services and introduced the following in ElasticLoadBalancingV2:
Network Load Balancer (NLB);
Application Load Balancer (ALB);
Gateway Load Balancer (GLB).
Summary of differences: ALB vs. NLB vs. GLB (Image Source: AWS)
NLB is designed for high performance, low latency, and TCP/UDP traffic, which makes it perfect for situations like ours, where we are dealing with an Orchard Core CMS web app. NLB is optimised for handling millions of requests per second and is ideal for routing traffic to ECS containers.
ALB is usually better suited for HTTP/HTTPS traffic. ALB offers more advanced routing features for HTTP. Since we are mostly concerned with handling general traffic to ECS, NLB is simpler and more efficient.
GLB works well if we manage traffic between cloud and on-premises environments or across different regions, which does not apply to our use case here.
Configure NLB
Setting up an NLB in AWS always involves these three key components:
AWS::ElasticLoadBalancingV2::LoadBalancer;
AWS::ElasticLoadBalancingV2::TargetGroup;
AWS::ElasticLoadBalancingV2::Listener.
Firstly, LoadBalancer distributes traffic across multiple targets such as ECS tasks.
In the template above, we create a NLB (Type: network) that is not exposed to the public internet (Scheme: internal). It is deployed across two private subnets, ensuring high availability. Finally, to prevent accidental deletion, we enable the deletion protection. In the future, we must disable it before we can delete the NLB.
Please take note that we do not enable Cross-Zone Load Balancing here because AWS charges for inter-AZ traffic. Also, since we are planning each AZ to have the same number of targets, disabling cross-zone helps preserve optimal routing.
Secondly, we need to setup TargetGroup to tell the NLB to send traffic to our ECS tasks running Orchard Core CMS.
Here, we indicate that the TargetGroup is listening on port 80 and expects TCP traffic. TargetType: instance means NLB will send traffic directly to EC2 instances that are hosting our ECS tasks. We also link it to our VPC to ensure traffic stays within our network.
Even though the NLB uses TCP at the transport layer, it performs health checks at the application layer (HTTP). This ensures that the NLB can intelligently route traffic only to instances that are responding correctly to the application-level health check endpoint. Our choice of HTTP for the health check protocol instead of TCP is because the Orchard Core running on ECS is listening on port 80 and exposing an HTTP health check endpoint /health. By using HTTP for health checks, we can ensure that the NLB can detect not only if the server is up but also if the Orchard Core is functioning correctly.
We also setup Deregistration Delay to be 10 seconds. Thus, when an ECS task is stopped or removed, the NLB waits 10 seconds before fully removing it. This helps prevent dropped connections by allowing any in-progress requests to finish. We can keep 10 for now if the CMS does not have long requests. However, when we start to notice 502/503 errors when deploying updates, we should increase it to 30 or more.
In addition, normally, a Target Group checks if the app is healthy before sending traffic. Since NLB only supports TCP health checks and our Orchard Core app does not expose a TCP check, we skip health checks for now.
Thirdly, we need to configure the Listener. This Listener is responsible for handling incoming traffic on our NLB. When a request comes in, the Listener forwards the traffic to the Target Group, which then routes it to our ECS instances running Orchard Core CMS.
The Listener port is the entry point where the NLB receives traffic from. It is different from the TargetGroup port which is the port on the ECS instances where the Orchard Core app is actually running. The Listener forwards traffic from its port to the TargetGroup port. In most cases, they are the same for simplicity.
The DefaultActions section ensures that all incoming requests are automatically directed to the correct target without any additional processing. This setup allows our NLB to efficiently distribute traffic to the ECS tasks while keeping the configuration simple and scalable.
In the NLB setup above, have you noticed that we do not handle port 443 (HTTPS)? Right now, our setup only works with HTTP on port 80.
So, if users visit our Orchard Core with HTTPS, the request stays encrypted as it passes through the NLB. But here is the problem because that means our ECS task must be able to handle HTTPS itself. If our ECS tasks only listen on port 80, they will receive encrypted HTTPS traffic, which they cannot process.
So why not we configure Orchard Core to accept HTTPS directly by having it listen on port 443 in Program.cs? Sure! However, this would require our ECS tasks to handle SSL termination themselves. We thus need to manage SSL certificates ourselves, which adds complexity to our setup.
Hence, we need a way to properly handle HTTPS before it reaches ECS. Now, let’s see how we can solve this with API Gateway!
Unit 10: API Gateway
As we discussed earlier, not always, but it is best practice to offload SSL termination to API Gateway because NLB does not handle SSL decryption. The SSL termination happens automatically with API Gateway for HTTPS traffic. It is a built-in feature, so we do not have to worry about manually managing SSL certificates on our backend.
In addition, API Gateway brings extra benefits such as blocking unwanted traffic and ensures only the right users can access our services. It also caches frequent requests, reducing load on our backend. Finally, it is able to log all requests, making troubleshooting faster.
By using API Gateway, we keep our infrastructure secure, efficient, and easy to manage.
Let’s start with a basic setup of API Gateway with NLB by setting up the following required components:
AWS::ApiGateway::RestApi: The root API that ties everything together. It defines the API itself before adding resources and methods.
AWS::ApiGateway::VpcLink: Connects API Gateway to the NLB.
AWS::ApiGateway::Resource: Defines the API endpoint path.
AWS::ApiGateway::Method: Specifies how the API handles requests (e.g. GET, POST).
AWS::ApiGateway::Deployment: Deploys the API configuration.
AWS::ApiGateway::Stage: Assigns a stage (e.g. dev, prod) to the deployment.
Setup Rest API
API Gateway is like a front door to our backend services. Before we define any resources, methods, or integrations, we need to create this front door first, i.e. the AWS::ApiGateway::RestApi resource.
Here we disable the execute-api endpoint because we want to stop AWS from exposing a default execute-api endpoint. We want to enforce access through our own custom domain which we will setup later.
REGIONAL ensures that the API is available only within our AWS region. Setting it to REGIONAL is generally the recommended option for most apps, especially for our Orchard Core CMS, because both the ECS instances and the API Gateway are in the same region. This setup allows requests to be handled locally, which minimises latency. In the future, if our CMS user base grows and is distributed globally, we may need to consider switching to EDGE to serve our CMS to a larger global audience with better performance and lower latency across regions.
Finally, since this API is mainly acting as a reverse proxy to our Orchard Core homepage on ECS, CORS is not needed. We also leave Policy: '' empty means anyone can access the public-facing Orchard Core. Instead, security should be handled by the Orchard Core authentication.
Now that we have our root API, the next step is to connect it to our VPC using VpcLink!
Setup VPC Link
The VPC Link allows API Gateway to access private resources in our VPC, such as our ECS services via the NLB. This connection ensures that requests from the API Gateway can securely reach the Orchard Core CMS hosted in ECS, even though those resources are not publicly exposed.
In simple terms, VPC Link acts as a bridge between the public-facing API Gateway and the internal resources within our VPC.
So in our template, we define the VPC Link and specify the NLB as the target, which means that all API requests coming into the Gateway will be forwarded to the NLB, which will then route them to our ECS tasks securely.
apiGatewayVpcLink: Type: AWS::ApiGateway::VpcLink Description: "VPC link for API Gateway of Orchard Core" Properties: Name: !Sub "${ServiceName}-vpc-link" TargetArns: - !Ref internalNlb
Now that we have set up the VpcLink, which connects our API Gateway to our ECS, the next step is to define how requests will actually reach our ECS. That is where the API Gateway Resource comes into play.
Setup API Gateway Resource
For the API Gateway to know what to do with the incoming requests once they cross that VPC Link bridge, we need to define specific resources, i.e. the URL paths our users will use to access the Orchard Core CMS.

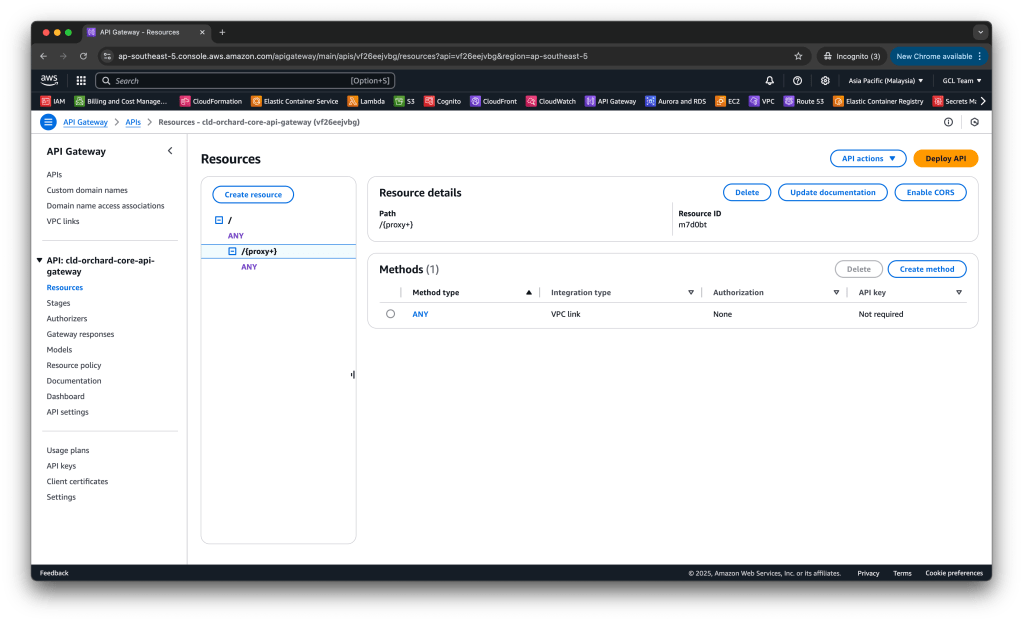

In our case, we use a proxy resource to catch all requests and send them to the backend ECS service. This lets us handle dynamic requests with minimal configuration, as any path requested will be forwarded to ECS.
Using proxy resource is particularly useful for web apps like Orchard Core CMS, where the routes could be dynamic and vary widely, such as /home, /content-item/{id}, /admin/{section}. With the proxy resource, we do not need to define each individual route or API endpoint in the API Gateway. As the CMS grows and new routes are added, we also will not need to constantly update the API Gateway configuration.
After setting up the resources and establishing the VPC link to connect API Gateway to our ECS instances, the next step is to define how we handle incoming requests to those resources. This is where the AWS::ApiGateway::Method comes in. It defines the specific HTTP methods that API Gateway should accept for a particular resource.
Setup Method
The Resource component above is used to define where the requests will go. However, just defining the path alone is not enough to handle incoming requests. We need to tell API Gateway how to handle requests that come to those paths. This is where the AWS::ApiGateway::Method component comes into play.
For a use case like hosting Orchard Core CMS, the following configuration can be a good starting point.
By setting up both the root method and the proxy method, the API Gateway can handle both general traffic via the root method and dynamic path-based traffic via the proxy method in a flexible way. This reduces the need for additional methods and resources to manage various paths.
Handling dynamic path-based traffic for Orchard Core via the proxy method.
Since Orchard Core is designed for browsing, updating, and deleting content, as a start, we may need support for multiple HTTP methods. By using ANY, we are ensuring that all these HTTP methods are supported without having to define separate methods for each one.
Setting AuthorizationType to NONE is a good starting point, especially in cases where we are not expecting to implement authentication directly at the API Gateway level. Instead, we are relying on Orchard Core built-in authentication module, which already provides user login, membership, and access control. Later, if needed, we can enhance security by adding authentication layers at the API Gateway level, such as AWS IAM, Cognito, or Lambda authorisers.
Similar to the authorisation, setting ApiKeyRequired to False is also a good choice for a starting point, especially since we are not yet exposing a public API. The setup above is primarily for routing requests to Orchard Core CMS. We could change if we need to secure our CMS API endpoints in the future when 3rd-party integrations or external apps need access to the CMS API.
Up to this point, API Gateway has a Resource and a Method, but it still does not know where to send the request. That is where Integration comes in. In our setup above, it tells API Gateway to use VPC Link to talk to the ECS. It also makes API Gateway act as a reverse proxy by setting Type to HTTP_PROXY. It will simply forward all types of HTTP requests to Orchard Core without modifying them.
Even though API Gateway enforces HTTPS for external traffic, it decrypts (aka terminates SSL), validates the request, and then forwards it over HTTP to NLB within the AWS private network. Since this internal communication happens securely inside AWS, the Uri is using HTTP.
After setting up the resources and methods in API Gateway, we are essentially defining the blueprint for our API. However, these configurations are only in a draft state so they are not yet live and accessible to our end-users. We need a step called Deployment to publish the configuration.
Setup Deployment
Without deploying, the changes we discussed above are just concepts and plans. We can test them within CloudFormation, but they will not be real in the API Gateway until they are deployed.
There is an important thing to take note is that API Gateway does not automatically detect changes in our CloudFormation template. If we do not create a new deployment, our changes will not take effect in the live environment. So, we must force a new deployment by changing something in AWS::ApiGateway::Deployment.
Another thing to take note is that a new AWS::ApiGateway::Deployment will not automatically be triggered when we update our API Gateway configurations unless the logical ID of the deployment resource itself changes. This means that every time we make changes to our API Gateway configurations, we need to manually change the logical ID of the AWS::ApiGateway::Deployment. The reason CloudFormation does not automatically redeploy is to avoid unnecessary changes or disruptions.
In the template above, we append a timestamp 202501011048 to the logical ID of the Deployment. This way, even if we make multiple deployments on the same day, each will have a unique logical ID due to the timestamp.
Deployment alone does not make our API available to the users. We still need to assign it to a specific Stage to ensure it has a versioned endpoint with all configurations applied.
Setup Stage
A Stage in API Gateway is a deployment environment that allows us to manage and control different versions of our API. It acts as a live endpoint for clients to interact with our API. Without a Stage, the API exists but is not publicly available. We can create stages like dev, test, and prod to separate development and production traffic.
For now, we will use production as the default stage name to keep things simple. This will help us get everything set up and running quickly. Once we are ready for more environments, we can easily update the ApiGatewayStageName in the Parameters based on our environment setup.
MethodSettings are configurations defining how requests are handled in terms of performance, logging, and throttling. Using /* and * is perfectly fine at the start as our goal is to apply global throttling and logging settings for all our Orchard Core routes in one go. However, in the future we might want to adjust the settings as follows:
Content Modification (POST, PUT, DELETE): Stricter throttling and more detailed logging.
Content Retrieval (GET): More relaxed throttling for GET requests since they are usually read-only and have lower impact.
Having a burst and rate limit is useful for protecting our Orchard Core backend from excessive traffic. Even if we have a CMS with predictable traffic patterns, having rate limiting helps to prevent abuse and ensure fair usage.
The production stage in our API Gateway.
Unit 11: Route53 for API Gateway
Now that we have successfully set up API Gateway, it is accessible through an AWS-generated URL, i.e. something like https://xxxxxx.execute-api.ap-southeast-5.amazonaws.com/production which is functional but not user-friendly. Hence, we need to setup a custom domain for it so that it easier to remember, more professional, and consistent with our branding.
AWS provides a straightforward way to implement this using two key configurations:
AWS::ApiGateway::DomainName – Links our custom domain to API Gateway.
AWS::ApiGateway::BasePathMapping – Organises API versions and routes under the same domain.
Setup Hosted Zone and DNS
Since I have my domain on GoDaddy, I will need to migrate DNS management to AWS Route 53 by creating a Hosted Zone.

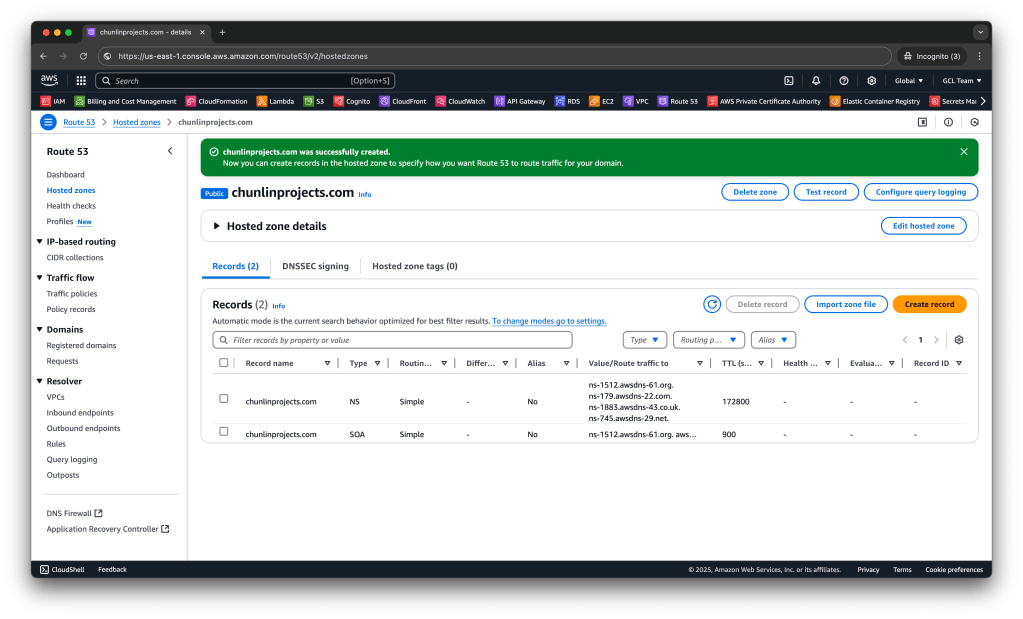

My personal hosted zone: chunlinprojects.com.
After creating a Hosted Zone in AWS, we need to manually copy the NS records to GoDaddy. This step is manual anyway, so we will not be automating this part of setup in CloudFormation. In addition, hosted zones are sensitive resources and should be managed carefully. We do not want hosted zones to be removed when our CloudFormation stacks are deleted too.
Once the switch is done, we can go back to our CloudFormation template to setup the custom domain name for our API Gateway.
Setup Custom Domain Name for API Gateway
API Gateway requires an SSL/TLS certificate to use a custom domain.
Take note that please update the DomainNames in the template above to use your domain name. Also, the HostedZoneId can be retrieved from the AWS Console under “Hosted zone details” in the screenshot above.
In the resource, DomainValidationOptions tells CloudFormation to use DNS validation. When we use the AWS::CertificateManager::Certificate resource in a CloudFormation stack, domain validation is handled automatically if all three of the following are true:
We are using DNS validation;
The certificate domain is hosted in Amazon Route 53;
The domain resides in our AWS account.
However, if the certificate uses email validation, or if the domain is not hosted in Route 53, then the stack will remain in the CREATE_IN_PROGRESS state. Here, we will show how we can log in to AWS Console to manually set up DNS validation.

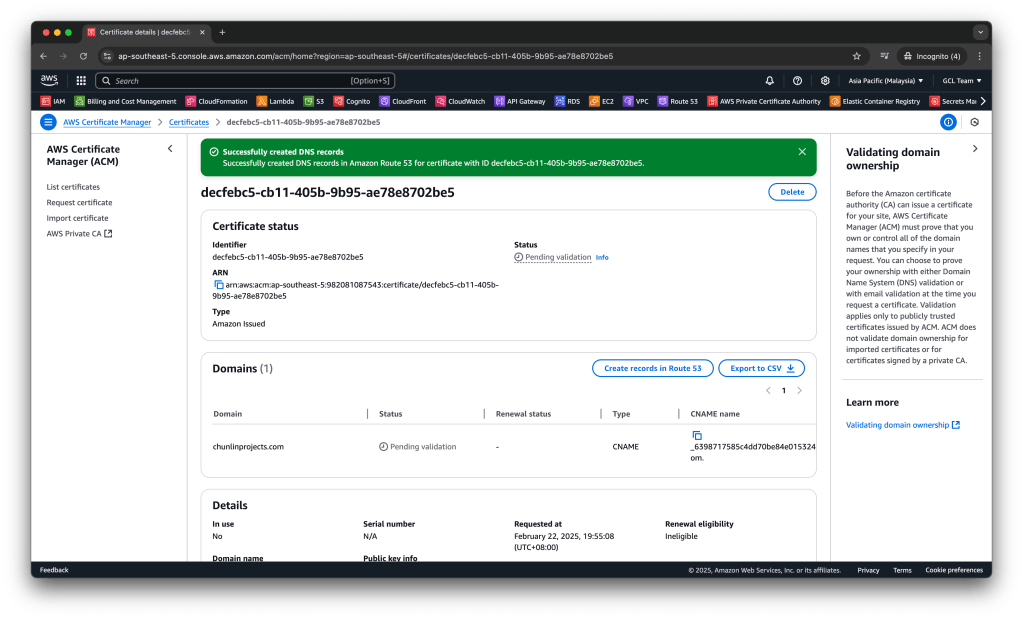

Remember to log in to AWS Console to check for ACM Certificate Status.
Now that the SSL certificate is ready and the DNS validation is done, we will need to link the SSL certificate to our API Gateway using a custom domain. We are using RegionalCertificateArn, which is intended for a regional API Gateway.
This allows our API to be securely accessed using our custom domain. We also set up a SecurityPolicy to use the latest TLS version (TLS 1.2), ensuring that the connection is secure and follows modern standards.
Even though it is optional, it is a good practice to specify the TLS version for both security and consistency, especially for production environments. Enforcing a TLS version helps avoid any potential vulnerabilities from outdated protocols.
Setup Custom Domain Routing
Next, we need to create a base path mapping to map the custom domain to our specific API stage in API Gateway.
The BasePathMapping is the crucial bridge between our custom domain and our API Gateway because when users visit our custom domain, we need a way to tell AWS API Gateway which specific API and stage should handle the incoming requests for that domain.
While the BasePathMapping connects our custom domain to a specific stage inside our API Gateway, we need to setup DNS routing outside AWS which handles the DNS resolution.
The RecordSet creates a DNS record (typically an A or CNAME record) that points to the API Gateway endpoint. Without this record, DNS systems outside AWS will not know where to direct traffic for our custom domain.
For API Gateway with a custom domain, AWS recommends using an Alias Record (which is similar to an A record) instead of a CNAME because the endpoint for API Gateway changes based on region and the nature of the service.
Alias records are a special feature in AWS Route 53 designed for pointing domain names directly to AWS resources like API Gateway, ELB, and so on. While CNAME records are often used in DNS to point to another domain, Alias records are unique to AWS and allow us to avoid extra DNS lookup costs.
As we move forward with hosting Orchard Core CMS, let’s go through a few hosting options available within AWS, as listed below.
EC2 (Elastic Compute Cloud): A traditional option for running virtual machines. We can fully control the environment but need to manage everything, from scaling to OS patching;
Elastic Beanstalk: PaaS optimised for traditional .NET apps on Windows/IIS, not really suitable for Orchard Core which runs best on Linux containers with Kestrel;
Lightsail: A traditional VPS (Virtual Private Server), where we manage the server and applications ourselves. It is a good fit for simple, low-traffic websites but not ideal for scalable workloads like Orchard Core CMS.
EKS (Elastic Kubernetes Service): A managed Kubernetes offering from AWS. It allows us to run Kubernetes clusters, which are great for large-scale apps with complex micro-services. However, managing Kubernetes adds complexity.
ECS (Elastic Container Service): A service designed for running containerised apps. We can run containers on serverless Fargate or EC2-backed clusters.
The reason why we choose ECS is because it offers a scalable, reliable, and cost-effective way to deploy Orchard Core in a containerised environment. ECS allows us to take advantage of containerisation benefits such as isolated, consistent deployments and easy portability across environments. With built-in support for auto-scaling and seamless integration with AWS services like RDS for databases, S3 for media storage, and CloudWatch for monitoring, ECS ensures high availability and performance.
In ECS, we can choose to use either Fargate or EC2-backed ECS for hosting Orchard Core, depends on our specific needs and use case. For highly customised, predictable, or resource-intensive workloads CMS, EC2-based ECS might be more appropriate due to the need for fine-grained control over resources and configurations.
Official documentation with CloudFormation template on how to setup an ECS cluster.
containerInstances: Type: AWS::EC2::LaunchTemplate Properties: LaunchTemplateName: "asg-launch-template" LaunchTemplateData: ImageId: !Ref EcsAmi InstanceType: "t3.large" IamInstanceProfile: Name: !Ref ec2InstanceProfile SecurityGroupIds: - !Ref ecsContainerHostSecurityGroup # This injected configuration file is how the EC2 instance # knows which ECS cluster it should be joining UserData: Fn::Base64: !Sub | #!/bin/bash -xe echo "ECS_CLUSTER=core-cluster" >> /etc/ecs/ecs.config # Disable IMDSv1, and require IMDSv2 MetadataOptions: HttpEndpoint: enabled HttpTokens: required
As shown in the above CloudFormation template, instead of hardcoding an AMI ID which will become outdated over time, we have a parameter to ensure that the cluster always provisions instances using the most recent Amazon Linux 2023 ECS-optimised AMI.
EcsAmi: Description: The Amazon Machine Image ID used for the cluster Type: AWS::SSM::Parameter::Value<AWS::EC2::Image::Id> Default: /aws/service/ecs/optimized-ami/amazon-linux-2023/recommended/image_id
Also, the EC2 instances need access to communicate with the ECS service endpoint. This can be through an interface VPC endpoint or through our EC2 instances having public IP addresses. In our case, we are placing our EC2 instances in private subnets, so we use the Network Address Translation (NAT) to provide this access.
In the setup above, we are sending logs to CloudWatch Logs so that we can centralise logs from all ECS tasks, making it easier to monitor and troubleshoot our containers.
By default, ECS is using bridge network mode. In bridge mode, containers do not get their own network interfaces. Instead, the container port (5000) must be mapped to a port on the host EC2 instance (80). Without this mapping, the Orchard Core on EC2 would not be reachable from outside. The reason we set the ContainerPort: 5000 in is to match the port our Orchard Core app is exposed on within the Docker container.
As CMS platforms like Orchard Core generally require more memory for smooth operations, especially in production environments with more traffic, it is better to start with a CPU allocation like 256 (0.25 vCPU) and 1024 MB for memory, depending on expected load.
For the MemoryReservation which is a guaranteed amount of memory for our container, we set it to be 512 MB of memory. By reserving memory, we are ensuring that your container has enough memory to run reliably. Orchard Core, being a modular CMS, can consume more memory depending on the number of features/modules you have enabled. Later if we realise Orchard Core does not need that much guaranteed memory, we can leave MemoryReservation lower. The key idea is to reserve enough memory to ensure stable operations without overcommitting.
Next, we have Essential where we set it to true. This property specifies whether the container is essential to the ECS task. We set it to true so that ECS will treat this Orchard Core container as vital for the task. If the container stops or fails, ECS will stop the entire task. Otherwise, ECS will not automatically stop the task if this Orchard Core container fails, which could lead to issues, especially in a production environment.
Finally, we must not forget about HealthCheck. In most web apps like Orchard Core, a simple HTTP endpoint /health is normally used as a health check. Here, we need to understand that many minimal container images like ECS-optimised AMIs do not include curl by default to keep them lightweight. However, wget is often available by default, making it a good alternative for checking if an HTTP endpoint is reachable. Hence, in the template above, ECS is using wget to check the /health endpoint on port 5000. If it receives an error, the container is considered unhealthy.
We can test locally to check if curl or wget is available in the image.
Once the TaskDefinition is set up, it defines the container specs. However, the ECS service is needed to manage how and where the task runs within the ECS cluster. We need the ECS service tells ECS how to run the task, manage it, and keep it running smoothly.
The DesiredCount is the number of tasks (or containers) we want ECS to run at all times for Orchard Core app. In this case, we set it to 2 which means that ECS will try to keep exactly 2 tasks running for our service. Setting it to 2 helps ensure that we have redundancy. If one task goes down, the other task can continue serving, ensuring that our CMS stays available and resilient.
Based on the number of DesiredCount, we indicate that during deployment, ECS can temporarily run up to 4 tasks (MaximumPercent: 200) and at least 1 task (MinimumHealthyPercent: 50) must be healthy during updates to ensure smooth deployment.
The LoadBalancers section in the ECS service definition is where we link our service to the NLB that we set up earlier, ensuring that the NLB will distribute the traffic to the correct tasks running within the ECS service. Also, since our container is configured to run on port 5000 as per our Dockerfile, this is the port we use.
Next, we have PlacementStrategies to help us control how our tasks are distributed across different instances and availability zones, making sure our CMS is resilient and well-distributed. Here, attribute:ecs.availability-zone ensures the tasks are spread evenly across different availability zones within the same region. At the same time, Field: instanceId ensures that our tasks are spread across different EC2 instances within the cluster.
Finally, it is a good practice to set a HealthCheckGracePeriodSeconds to give our containers some time to start and become healthy before ECS considers them unhealthy during scaling or deployments.
Unit 13: CloudWatch Alarm
To ensure we effectively monitor the performance of Orchard Core on our ECS service, we also need to set up CloudWatch alarms to track metrics like CPU utilisation, memory utilisation, health check, running task count, etc.
We set up the following CloudWatch alarm to monitor CPU utilisation for our ECS service. This alarm triggers if the CPU usage exceeds 75% for a specified period (5 minutes). By doing this, we can quickly identify when our service is under heavy load, which helps us take action to prevent performance issues.
Even if we leave AlarmActions and OKActions as empty arrays, the alarm state will still be visible in the AWS CloudWatch Console. We can monitor the alarm state directly on the CloudWatch dashboard.
Similar to the CPU utilisation alarm above, we have another alarm to trigger when the count of running tasks is 0 (less than 1) for 5 consecutive periods, indicating that there have been no running tasks for a full 5 minutes.
noRunningTasksAlarm: Type: AWS::CloudWatch::Alarm Properties: AlarmName: !Sub "${AWS::StackName}-no-task" AlarmDescription: !Sub "ECS service ${AWS::StackName}: No running ECS tasks for more than 5 mins" Namespace: AWS/ECS MetricName: RunningTaskCount Dimensions: - Name: ClusterName Value: !Ref ecsCluster - Name: ServiceName Value: !Ref ServiceName Statistic: Average Period: 60 EvaluationPeriods: 5 Threshold: 1 ComparisonOperator: LessThanThreshold TreatMissingData: notBreaching ActionsEnabled: true AlarmActions: [] OKActions: []

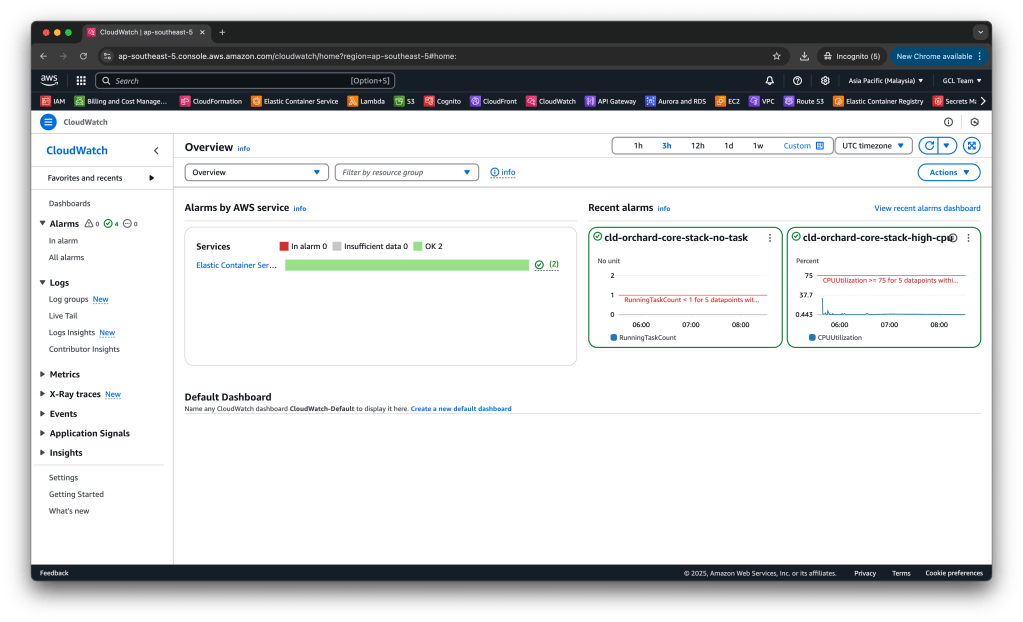

The two alarms are available on CloudWatch dashboard.
By monitoring these key metrics, we can proactively address any performance or availability issues, ensuring our Orchard Core CMS runs smoothly and efficiently.
Wrap-Up
Setting up Orchard Core on ECS with CloudFormation does have its complexities, especially with the different moving parts like API Gateway, load balancers, and domain configurations. However, once we have the infrastructure defined in CloudFormation, it becomes much easier to deploy, update, and manage our AWS environment. This is one of the key benefits of using CloudFormation, as it gives us consistency, repeatability, and automation in our deployments.
Orchard Core website is up and accessible via our custom domain!
The heavy lifting is done up front, and after that, it is mostly about making updates to our CloudFormation stack and redeploying without having to worry about manually reconfiguring everything.
Localisation is an important feature when building apps that cater to users from different countries, allowing them to interact with our app in their native language. In this article, we will walk you through how to set up and configure Portable Object (PO) Localisation in an ASP.NET Core Web API project.
Localisation is about adapting the app for a specific culture or language by translating text and customising resources. It involves translating user-facing text and content into the target language.
While .NET localisation normally uses resource files (.resx) to store localised texts for different cultures, Portable Object files (.po) are another popular choice, especially in apps that use open-source tools or frameworks.
About Portable Object (PO)
PO files are a standard format used for storing localised text. They are part of the gettext localisation framework, which is widely used across different programming ecosystems.
A PO file contains translations in the form of key-value pairs, where:
Key: The original text in the source language.
Value: The translated text in the target language.
Because PO files are simple, human-readable text files, they are easily accessible and editable by translators. This flexibility makes PO files a popular choice for many open-source projects and apps across various platforms.
Unlike .resx files, PO files have built-in support for plural forms. This makes it much easier to handle situations where the translation changes based on the quantity, like “1 item” vs. “2 items.”
While .resx files require compilation, PO files are plain text files. Hence, we do not need any special tooling or complex build steps to use PO files.
PO files work great with collaborative translation tools. For those who are working with crowdsourcing translations, they will find that PO files are much easier to manage in these settings.
Let’s begin by creating a simple ASP.NET Web API project. We can start by generating a basic template with the following command.
dotnet new webapi
This will set up a minimal API with a weather forecast endpoint.
The default /weatherforecast endpoint generated by .NET Web API boilerplate.
The default endpoint in the boilerplate returns a JSON object that includes a summary field. This field describes the weather using terms like freezing, bracing, warm, or hot. Here’s the array of possible summary values:
As you can see, currently, it only supports English. To extend support for multiple languages, we will introduce localisation.
Prepare PO Files
Let’s start by adding a translation for the weather summary in Chinese. Below is a sample PO file that contains the Chinese translation for the weather summaries.
In most cases, PO file names are tied to locales, as they represent translations for specific languages and regions. The naming convention typically includes both the language and the region, so the system can easily identify and use the correct file. For example, the PO file above should be named zh-CN.po, which represents the Chinese translation for the China region.
In some cases, if our app supports a language without being region-specific, we could have a PO file named only with the language, such as ms.po for Malay. This serves as a fallback for all Malay speakers, regardless of their region.

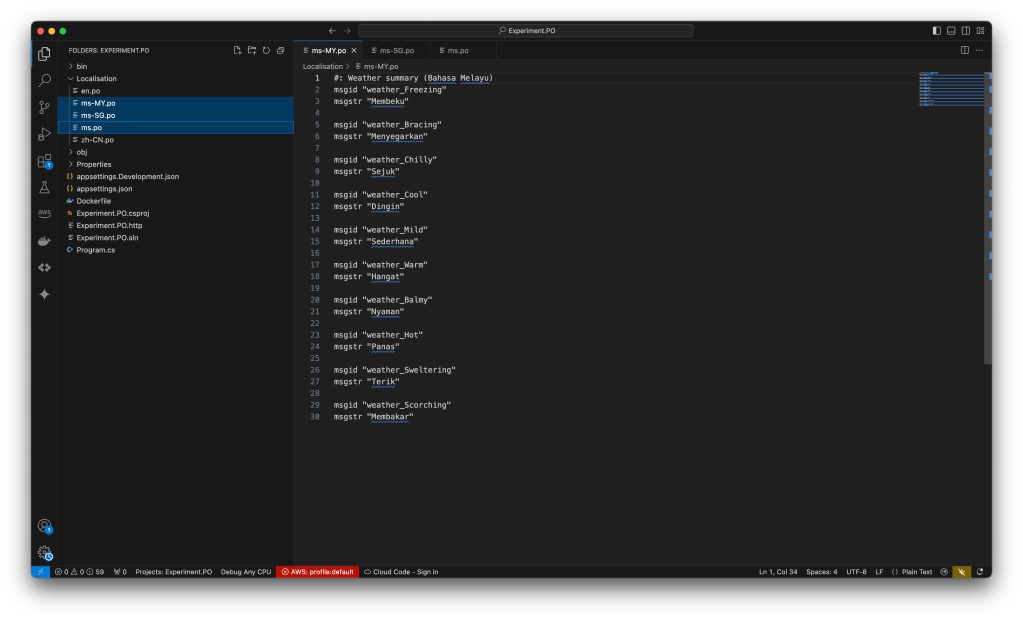

We have prepared three Malay PO files: one for Malaysia (ms-MY.po), one for Singapore (ms-SG.po), and one fallback file (ms.po) for all Malay speakers, regardless of region.
After that, since our PO files are placed in the Localisation folder, please do not forget to include them in the .csproj file, as shown below.
Adding this <ItemGroup> ensures that the localisation files from the Localisation folder are included in our app output. This helps the application find and use the proper localisation resources when running.
Once the package is installed, we need to tell the application where to find the PO files. This is done by configuring the localisation options in the Program.cs file.
The AddMemoryCache method is necessary here because LocalizationManager of Orchard Core uses the IMemoryCache service. This caching mechanism helps avoid repeatedly parsing and loading the PO files, improving performance by keeping the localised resources in memory.
Supported Cultures and Default Culture
Now, we need to configure how the application will select the appropriate culture for incoming requests.
In .NET, we need to specify which cultures our app supports. While .NET is capable of supporting multiple cultures out of the box, it still needs to know which specific cultures we are willing to support. By defining only the cultures we actually support, we can avoid unnecessary overhead and ensure that our app is optimised.
We have two separate things to manage when making an app available in different languages and regions in .NET:
SupportedCultures: This is about how the app displays numbers, dates, and currencies. For example, how a date is shown (like MM/dd/yyyy in the US);
SupportedUICultures: This is where we specify the languages our app supports for displaying text (the content inside the PO files).
To keep things consistent and handle both text translations and regional formatting properly, it is a good practice to configure both SupportedCultures and SupportedUICultures.
We also need to setup the DefaultRequestCulture. It is the fallback culture that our app uses when it does not have any explicit culture information from the request.
The following code shows how we configure all these. To make our demo simple, we assume the locale that user wants is passed via query string.
builder.Services.Configure<RequestLocalizationOptions>(options => { var supportedCultures = LocaleConstants.SupportedAppLocale .Select(cul => new CultureInfo(cul)) .ToArray();
options.DefaultRequestCulture = new RequestCulture( culture: "en", uiCulture: "en"); options.SupportedCultures = supportedCultures; options.SupportedUICultures = supportedCultures; options.AddInitialRequestCultureProvider( new CustomRequestCultureProvider(async httpContext => { var currentCulture = CultureInfo.InvariantCulture.Name; var requestUrlPath = httpContext.Request.Path.Value;
if (httpContext.Request.Query.ContainsKey("locale")) { currentCulture = httpContext.Request.Query["locale"].ToString(); }
return await Task.FromResult( new ProviderCultureResult(currentCulture)); }) ); });
Next, we need to add the RequestLocalizationMiddleware in Program.cs to automatically set culture information for requests based on information provided by the client.
app.UseRequestLocalization();
After setting up the RequestLocalizationMiddleware, we can now move on to localising the API endpoint by using IStringLocalizer to retrieve translated text based on the culture information set for the current request.
About IStringLocalizer
IStringLocalizer is a service in ASP.NET Core used for retrieving localised resources, such as strings, based on the current culture of our app. In essence, IStringLocalizer acts as a bridge between our code and the language resources (like PO files) that contain translations. If the localised value of a key is not found, then the indexer key is returned.
We first need to inject IStringLocalizer into our API controllers or any services where we want to retrieve localised text.
The reason we use IStringLocalizer<WeatherForecast> instead of just IStringLocalizer is because we are relying on Orchard Core package to handle the PO files. According to Sebastian Ros, the Orchard Core maintainer, we cannot resolve IStringLocalizer, we need IStringLocalizer<T>. When we use IStringLocalizer<T> instead of just IStringLocalizer is also related to how localisation is typically scoped in .NET applications.
Running on Localhost
Now, if we run the project using dotnet run, the Web API should compile successfully. Once the API is running on localhost, visiting the endpoint with zh-CN as the locale should return the weather summary in Chinese, as shown in the screenshot below.
The summary is getting the translated text from zh-CN.po now.
Dockerisation
Since the Web API is tested to be working, we can proceed to dockerise it.
We will first create a Dockerfile as shown below to define the environment our Web API will run in. Then we will build the Docker image, using the Dockerfile. After building the image, we will run it in a container, making our Web API available for use.
## Build Container FROM mcr.microsoft.com/dotnet/sdk:8.0-alpine AS builder WORKDIR /app
# Copy the project file and restore any dependencies (use .csproj for the project name) COPY *.csproj ./ RUN dotnet restore
# Copy the rest of the application code COPY . .
# Publish the application RUN dotnet publish -c Release -o out
## Runtime Container FROM mcr.microsoft.com/dotnet/aspnet:8.0-alpine AS runtime
ENV ASPNETCORE_URLS=http://*:80
WORKDIR /app COPY --from=builder /app/out ./
# Expose the port your application will run on EXPOSE 80
ENTRYPOINT ["dotnet", "Experiment.PO.dll"]
As shown in the Dockerfile, we are using .NET Alpine images. Alpine is a lightweight Linux distribution often used in Docker images because it is much smaller than other base images. It is a best practice when we want a minimal image with fewer security vulnerabilities and faster performance.
Globalisation Invariant Mode in .NET
When we run our Web API as a Docker container on our local machine, we will soon realise that our container has stopped because our Web API inside it crashed. It turns out that there is an exception called System.Globalization.CultureNotFoundException.
Our Web API crashes due to System.Globalization.CultureNotFoundException, as shown in docker logs.
As pointed out in the error message, only the invariant culture is supported in globalization-invariant mode.
The globalization-invariant mode was introduced in .NET 2.0 in 2017. It allows our apps to run without using the full globalization data, which can significantly reduce the runtime size and improve the performance of our application, especially in environments like Docker or microservices.
In globalization-invariant mode, only the invariant culture is used. This culture is based on English (United States) but it is not specifically tied to en-US. It is just a neutral culture used to ensure consistent behaviour across environments.
Before .NET 6, globalization-invariant mode allowed us to create any custom culture, as long as its name conformed to the BCP-47 standard. BCP-47 stands for Best Current Practice 47, and it defines a way to represent language tags that include the language, region, and other relevant cultural data. A BCP-47 language tag typically follows this pattern: language-region, for example zh-CN and zh-Hans.
We thus need to disable the globalization-invariant mode in the .csproj file, as shown below, so that we can use the full globalization data, which will allow .NET to properly handle localisation.
Since Alpine is a very minimal Linux distribution, it does not include many libraries, tools, or system components that are present in more standard distributions like Ubuntu.
In terms of globalisation, Alpine does not come pre-installed with ICU (International Components for Unicode), which .NET uses for localisation in our case.
Hence, after we turned off the globalization-invariant mode, we will encounter another issue, which is our Web API not being able to locate a valid ICU package.
Our Web API crashes due to the missing of ICU package, as shown in docker logs.
As suggested in the error message, we need to install the ICU libraries (icu-libs).
In .NET, icu-libs provides the necessary ICU libraries that allow our Web API to handle globalisation. However, the ICU libraries rely on culture-specific data to function correctly. This culture-specific data is provided by icu-data-full, which includes the full set of localisation and globalisation data for different languages and regions. Therefore, we need to install both icu-libs and icu-data-full, as shown below.
...
## Runtime Container FROM mcr.microsoft.com/dotnet/aspnet:8.0-alpine AS runtime
After installing the ICU libraries, our weather forecast Web API container should be running successfully now. Now, when we visit the endpoint, we will realise that it is able to retrieve the correct value from the PO files, as shown in the following screenshot.
Yay, we can get the translated texts now!
One last thing I would like to share is that, as shown in the screenshot above, since we do not have a PO file for ms-BN (Malay for Brunei), the fallback mechanism automatically uses the ms.po file instead.
Additional Configuration
If you still could not get the translation with PO files to work, perhaps you can try out some of the suggestions from my teammates below.
Firstly, you may need to setup the AppLocalIcu in .csproj file. This setting is used to specify whether the app should use a local copy of ICU or rely on the system-installed ICU libraries. This is particularly useful in containerised environments like Docker.
Secondly, even though we have installed icu-libs and icu-data-full in our Alpine container, some .NET apps rely on data beyond just having the libraries available. In such case, we need to turn on the IncludeNativeLibrariesForSelfExtract setting as well in .csproj.
Thirdly, please check if you need to configure DOTNET_SYSTEM_GLOBALIZATION_PREDEFINED_CULTURES_ONLY as well. However, please take note that this setting only makes sense when when globalization-invariant mode is enabled.
Finally, you may also need to include the runtime ICU libraries with the Microsoft.ICU.ICU4C.Runtime NuGet package (Version 72.1.0.3), enabling your app to use culture-specific data for globalisation features.
